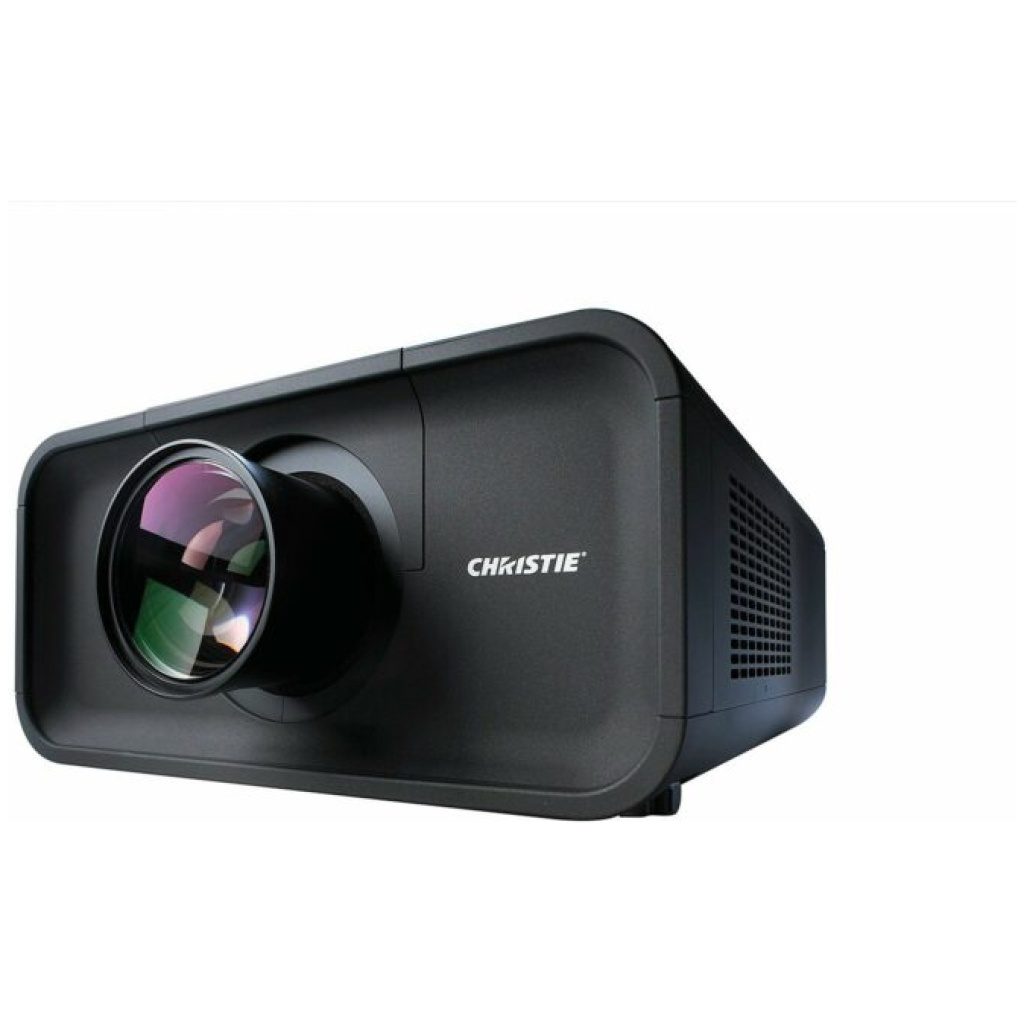

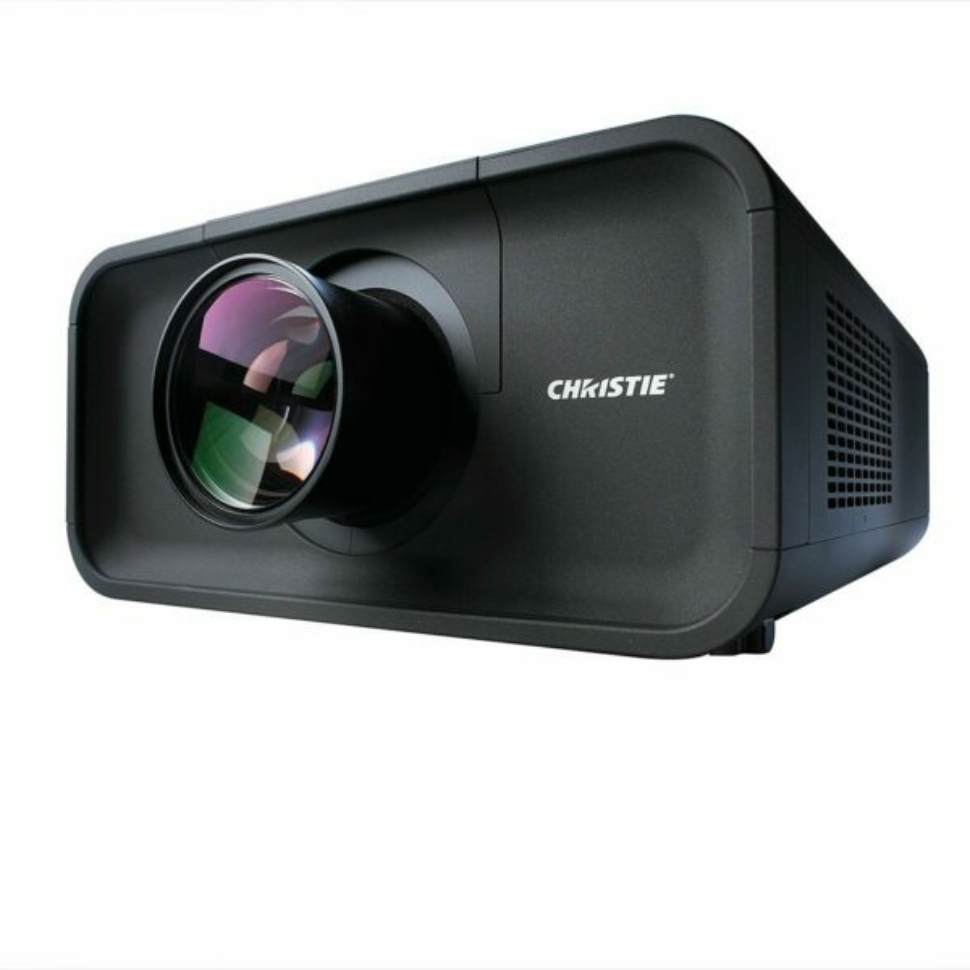

Name: Christie LHD-700 - SPOTLAB
Price: 200.00 USD
Availability: InStock

Description

This single-lamp, portable projector features 7000 ANSI lumen brightness, full HD resolution, 4DColor™ technology and inorganic LCD panels for high contrast and vivid color presentations. 4DColor™ technology gives a 20 percent increase in color gamut over comparable 3LCD models.

The Christie LHD700 is easy to set up and use with motorized lenses and 3D Keystone™ capabilities. A variety of input connections and a suite of optional lenses ensure that the Christie LHD700 can meet your application requirements. Crestron’s RoomView® and AMX Discovery Device make it easy and quick to configure third-party equipment with this projector.

The AutoFilter, easy lamp access and up to 3000 hours lamp life (eco mode) help reduce projector downtime, and service and maintenance costs.

The Christie LHD700 brings full HD resolution in a single-lamp, portable design that’s affordable and maintains high performance for medium-sized applications.

Specifications


– 7000 ANSI lumens
– Contrast Ratio: 3000:1 (full on/off)
– 90% Brightness Uniformity (corner to corner)

Display

3 x 1.2″ Inorganic LCD
Full HD 1920 x 1080

Lamp

– 380W Ushio NSHA x1
– Normal Mode: 2000 hours
– Eco Mode: 3000 hours

Input signal compatibility

UXGA/SXGA+/SXGA/WXGA/XGA/SVGA/VGA, MAC, NTCS, PAL, SECAM, NTSC4.43, PAL-M, PAL-N . Video (480i, 480P, 720P, 1080i, 1080p, 1080psf )

Pixel clock

162 MHz. Analog ; 162 MHz Digital

Scan rates

Horizontal: 15kHz to 120kHz
Vertical: 38Hz to 120Hz

Inputs, control and networking

– Input #1: DVI-D x 1 (HDCP Compatible ), HDMI (V1.3 with DeepColor Compatible)
– Input #2: BNC x 5 (R, G, B, H, V & Y, Pb/Cb, Pr/Cr & Composite), D-sub 15 x 1
– Input #3: S-Video -DIN 4-pin x 1 ; RCA x3 (Video/Y, Pb/Cb,Pr/Cr)
– Control: Serial Input – Dsub-9×1; CCM-LX input connector
– Network: RJ-45 x1 (LAN)
– Serial Output: Dsub-9 x 1. R/C jack: mini jack x 1

Optical system

Motorized zoom, focus and lens shift
Mechanical light shutter

Lenses

Fixed
-Short 0.8:1
Zoom
-Short 1.3-1.8:1
-Standard 1.8-2.3:1
-Semi long 2.3-4.2:1
– Long Zoom 4.3-6.0:1
-Ultra Long 5.7-9.0:1
Digital Keystone
-V +/- 40°, H +/- 20° and 3D Keystone™

Accessories

Standard
– Quick setup manual
– Real Color Management software instructions
– Lens spacer for option lenses
– Light-block sheet
– Mounting clamp
– Lens cover strap
– Power cord
– AC cord UL type (NEMA 6-20P plug type) 3 meters
– AC cord European2P plug type 3 meters
– Computer cable (Dsub15-Dsub15)
– Remote control
Optional
– CCM-LX Network Module
– 380W USHIO NSHA lamp
– AutoFilter cartridge

Enchanced feature set

– 4DColor™ technology
– Crestron RoomView™
– AMX Device Discovery
– Edge blending and color matching
– 360 degree on-axis rotation
– PiP and PbyP
– Stackable design for redundancy or added brightness
– Digital keystone
– AutoFilter cartridge (up to 10,000 hours) maintenance free operation
– Customizable start-up logo
– Native 16:9; selectable aspect ratio 4:3 and true mode
– Intuitive graphical user interface
– Built-in keypad (power on/standby, menu, up, down, left, right arrows)
– Front and rear infrared sensors for IR keypad
– Auto discoloration prevention with 3D-AUCC technology
– Top access to LCD panels- simplifies cleaning and maintenance
*In a stacked setup, this projector is best suited for events or temporary use. The projector may need to be re-aligned if it is used in a fixed-installation application

Power requirements

– Operating voltage: 100-120 V AC +/- 10% / 200-240 V AC +/- 10%
– Operating current: 6.0 A
– Power: 520 W (Lamp Normal 100-120V), 500 W (Lamp Normal 200-240V)
– Dissipation: 2020 BTU/h

Dimensions

– Body size (LxWxH): 17 x 14.5 x 7.36″ (439.9 x 370.0 x 187.0mm) – body only, without lens; feet at minimum height position
– Shipping size (LxWxH): 24.8 x 19.3 x 15.2″ (630x 492x 388mm)
– Weight: 25.1lb (11.4kg) (without lens)
– Shipping Weight: 35.1lb (15.9kg) without Lens

Operating environment

– Temperature: 41°F to 104°F (5°C to 40°C)
– Storage temperature: 14˚F to 140˚F (-10˚C to 60˚C)
– Humidity: 20% to 80% non-condensing

Operating noise

Normal mode: 42 dBA
Eco Mode: 38 dBA

Regulatory approvals

– Directives (EC) 2002/95/EC (RoHS); 2002/96/EC (WEEE)
– Regulation (EC) No. 1907/2006 (REACH); CAN/CSA C22.2 No. 60950-1; UL 60950-1; IEC 60950-1; FCC, Part 15, Subpart B, Class A; EN55022/CISPR22 Class A; EN55024 / CISPR24
– Certifications marks: – cULus (Canada and US) – CE (EU) – CCC (China) – GoST-R (Russia)
